Pinpoint accuracy combined with measurement versatility

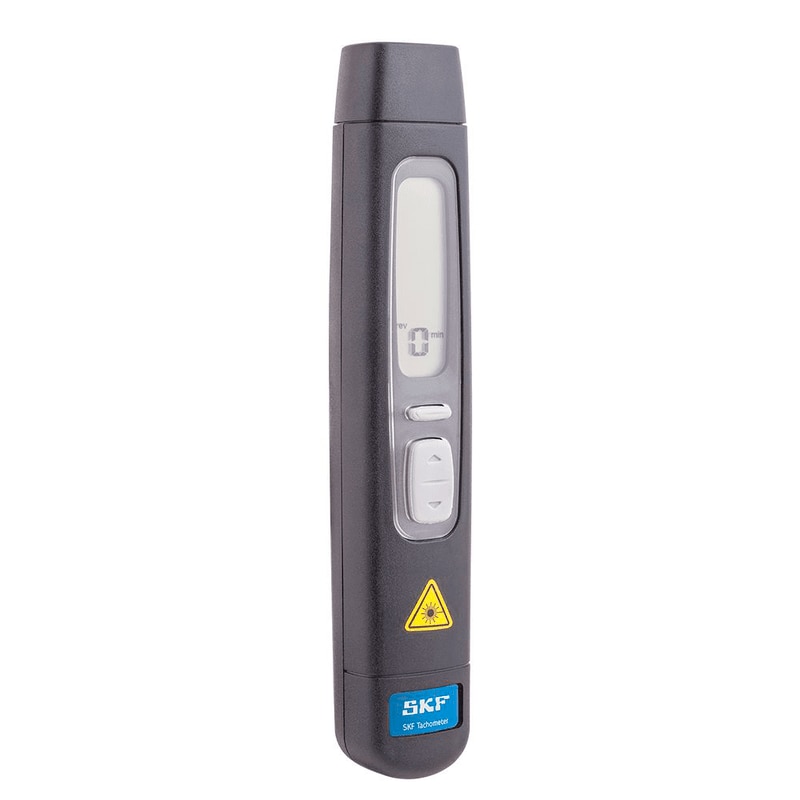

The SKF Multi–functional Digital Tachometer TMRT 1 is a user–friendly and accurate digital tachometer utilising laser or contact for measuring rotational and linear speed. Equipped with a laser and contact adaptor, it offers excellent speed measurement versatility in five different modes. Additionally, the large angular range of ± 80° to target facilitates the easy measurement in areas where straight–line access is difficult. The laser optical system allows easy and quick speed measurement at a safe distance from rotating machinery.

With this digital tachometer the user can select to measure:
- rpm, rps, m, ft or yds per minute or second,
- length or revolution counting, or
- time interval
Wide speed range and the various measurement modes make the TMRT 1 suitable for measuring speed in many applications
Large angular range of ± 80° to target facilitates easy measuring in areas where straight–line access is difficult
The large inverting LCD display facilitates easy reading even when pointing the unit down into the machinery
Compact design; one–hand operated instrument
Supplied in carrying case for protection and portability
The digital tachometer TMRT 1 can also be equipped with remote laser sensor, which is optionally available

Technical data
Designation	TMRT 1 digital tachometer
Display	Inverting LCD Vertical 5 digit display
Display functions	180º Inverting
Rotational speed range	Optical mode: 3-99,999 rpm (or equivalent in rps)
	Contact mode: Max. 50 000 rpm for 10 sec (or equivalent in rps)
Linear speed range	0.30-1 500.0 Metres or Yds/min. (4 500 ft/min) or equivalent in seconds
Measurement modes	Optical; rpm and rps (also Count and Time)
	Via contact adaptor; rpm and rps, metres, yards, feet, per min and per sec.
	Count total revs, metres, feet, yards
	Measure Time interval in seconds between pulses (reciprocal rate)
	Speed Capture feature - Maximum, Minimum or Average rate
Laser optical range	50 mm - 2 000 mm (1.9 - 78.7 in.)
Angle of operation	± 80º
Light source	Class II laser diode
Accuracy speed modes only	0.01%, ± 1 digit
Resolution range features	Fully Auto ranging up to 0,001 digit or ± 1 digit fixed, user selectable
On target indicator	Yes
Low battery indicator	Yes
Memory features	- Last reading held for 1 minute
	- Program settings retained in memory after power off
Auto switch off	After 1 minute

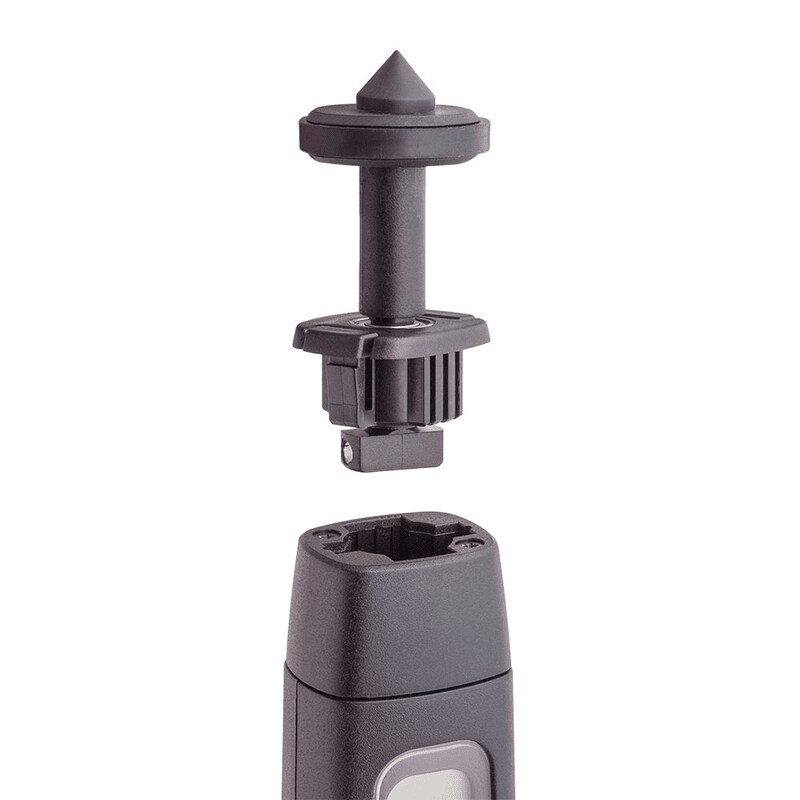

Contact adaptor	Included complete with rpm cone and removable metric wheel assembly
Battery type	4 x AAA alkaline cells
Unit dimensions	213 x 40 x 39 mm (8.3 x 1.5 x 1.5 in.)
Unit weight	170 g (5.9 oz)
Carrying case dimensions	238 x 49 x 102 mm (9.3 x 1.9 x 4.0 in.)
Total weight (incl. case)	355 g (12.5 oz)
Warranty	12 months

Multi–functional digital tachometer

Pinpoint accuracy combined with measurement versatility

The Multi–functional digital tachometer TKRT 20 is a user–friendly and accurate digital tachometer utilising laser or contact for measuring rotational and linear speed. Equipped with a laser and contact adaptor, it offers excellent speed measurement versatility in five different modes. Additionally, the large angular range of ± 80° to target facilitates the easy measurement in areas where straight–line access is difficult. The laser optical system allows easy and quick speed measurement at a safe distance from rotating machinery.

With this digital tachometer the user can select to measure:
- rpm, rps, m, ft or yards per minute or second,
- length or revolution counting, or
- time interval
Wide speed range and the various measurement modes make the TKRT 20 suitable for measuring speed in many applications
Large angular range of ± 80° to target facilitates easy measuring in areas where straight–line access is difficult
The large inverting LCD display facilitates easy reading even when pointing the unit down into the machinery
Compact design; one–hand operated instrument
Supplied in carrying case for protection and portability
The digital tachometer TKRT 20 can also be equipped with remote laser sensor, which is optionally available
